Applications :

• The cables are used as railway cables and can be installed directly into the ground or in ducts.

Standards :

• RENFE E.T. 03.365.051.6

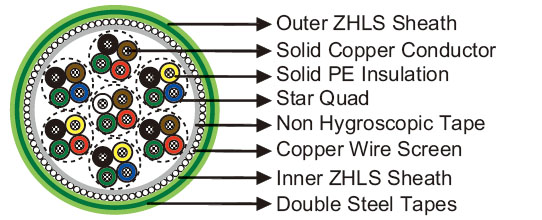

Construction :

• Conductors : Soft annealed solid copper, 0.9/1.4 mm nominal diameter.
• Insulation : PE insulation.
• Cabling Element : Four insulated conductors are twisted together to form a quad.
• Stranding : Quads are helically stranded in concentric layers.
• Core Wrapping : Two or more layers of plastic tape(s) with overlapping.
• Screen : 0.9/1.2/1.4/1.8mm copper wires wrapping with one plastic tape (protection against interference).
• Inner Sheath : LSZH sheath, coloured green.
• Armour : Two layers of steel tape (0.8mm thick).
• Outer Sheath : LSZH sheath, coloured green.

Electrical Characteristics at 20 °C :

• Nominal Conductor Diameter	mm	0.9	1.4
  Maximum Conductor Resistance	Ω/km	28.5	11.7
  Minimum Insulation Resistance @500 V DC	MΩ.km	35000	35000
  Mutual Capacitance @800Hz	nF/km	41	45
  Capacitance Unbalance @800Hz
  K1 maximum individual value	pF/460m	250	250
  K9-12 maximum individual value	pF/460m	250	250
  ea1/2 maximum individual value	pF/460m	1200	1200
  Attenuation
  @1KHz	dB/km	0.7	0.46
  @10KHz	dB/km	1.6	0.85
  @30KHz	dB/km	2.1	1.3
  Test Voltage @50Hz 1min
  Core to Core	Veff	2100	2100
  Core to Screen	Veff	2500	2500
  Core to Armouring	Veff	2000	2000
  Reduction Factor @100V/km 50Hz		0.1	0.1

Mechanical and Thermal Properties :

• Minimum Bending Radius : 10 × OD.
• Temperature Range : -40°C to +60°C (during operation); -10°C +60°C (during installation).

Dimensions and Weight :



Cable Code	Number of Quads	Nominal Sheath Thickness mm		Maximum Overall Diameter mm	Nominal Weight kg/km
		Inner	Outer
0.9mm Conductor, 1.8mm Insulated Wire
RS/CCTSST-FR0.1-2YDHBH-1Q0.9	1	1.5	1.6	20.6	1170
RS/CCTSST-FR0.1-2YDHBH-3Q0.9	3	1.5	1.6	24.7	1480
RS/CCTSST-FR0.1-2YDHBH-5Q0.9	5	1.5	1.6	27.3	1740
RS/CCTSST-FR0.1-2YDHBH-7Q0.9	7	1.5	1.6	29.6	1950
RS/CCTSST-FR0.1-2YDHBH-10Q0.9	10	1.5	1.6	33.5	2320
RS/CCTSST-FR0.1-2YDHBH-25Q0.9	25	1.7	1.8	44.2	3590
1.4mm Conductor, 2.7mm Insulated Wire
RS/CCTSST-FR0.1-2YDHBH-10Q1.4	10	1.6	1.8	39.2	3140





UV Resistant	Anti Induction	Water Resistant	Rated Voltage	Buried in Ciround	Laid In conduit	Low Toxicity



Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1	Fire Retardant NF C32-070-2.2(C1) IEC 60332-3/EN50266	Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1	Low Smoke Emission IEC 61034/NFC20-902 EN 50268/NF C32-073	Low Corrosivity EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453
